SPECIFICATIONS

Accessory Type: Charger Accessories

Battery Included: No

Brand Name: Banggood

Certification: CE

Charger included: Y

High-concerned chemical: None

Origin: Mainland China

Specifications:

Model number: ZT102

Material: ABS

Color: Gray&Blue

Sample rate: 3 times per second

Display: 6000 Counts

Auto range: Yes

Ture RMS: Yes

Date hold: Yes

Low voltage indication: Yes

Auto power off: Yes

Over range indication: OL

Backlight: Yes

Diode test: Yes

Continuity test: Yes

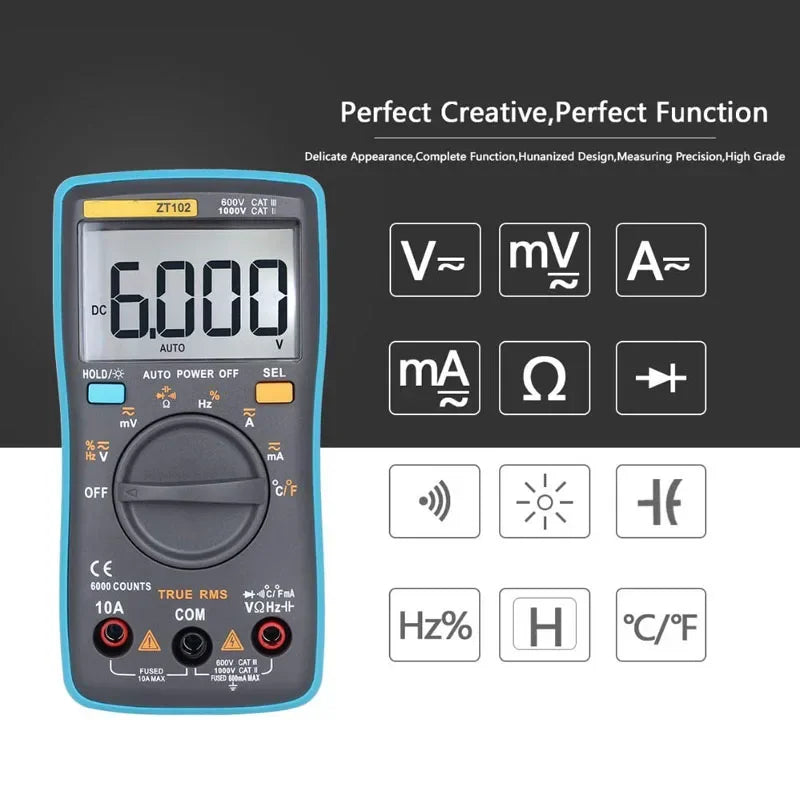

Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode, Continuity Testing and Temperature.

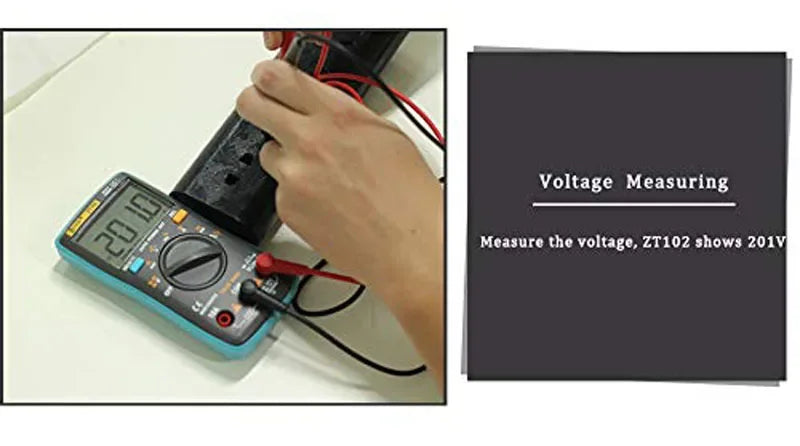

DC volts: 60mV/600mV±(0.5%+3),6V/60V/600V/1000V±(0.5%+3)

AC volts: 6V/60V/600V/750V±(1.0%+3),60mV/600mV±(1.0%+3）

DC current: 6A/10A±(1.2%+3),60mA/600mA±(1.2%+3)

AC current: 6A/10A±(1.5%+3),60mA/600mA±(1.5%+3)

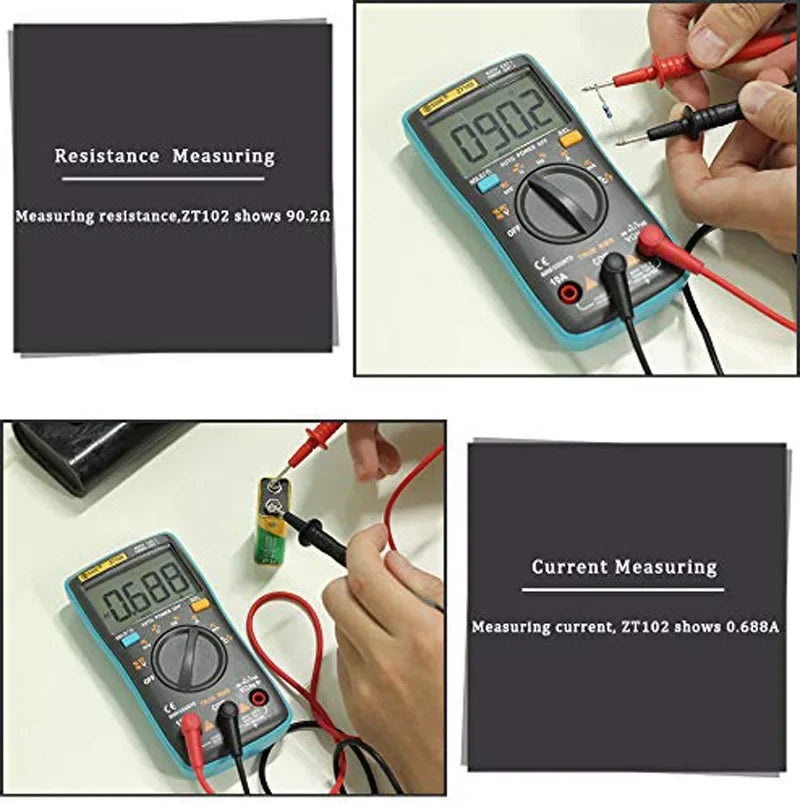

Resistance: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(0.5%+3),60MΩ±(1.5%+3)

Capacitance: 9.999nF±(5.0%+20)

                      99.99nF/999.9nF/9.999μF/99.99μF/999.9μF±(2.0%+5)

                      9.999mF±(5.0%+5)

Frequency: 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz±(0.1%+2)

Duty Cycle: 1%~99%±( 0.1%+2)

Temperature: (-20~1000)℃±(2.5%+5)

                      (-4~1832)℉±(2.5%+5)

Working environment: 0~40C, relative humidity<75%

Supply power: 1.5V AAA battery * 2 (becausue air control , battery is not included)

Product Weight: 127g

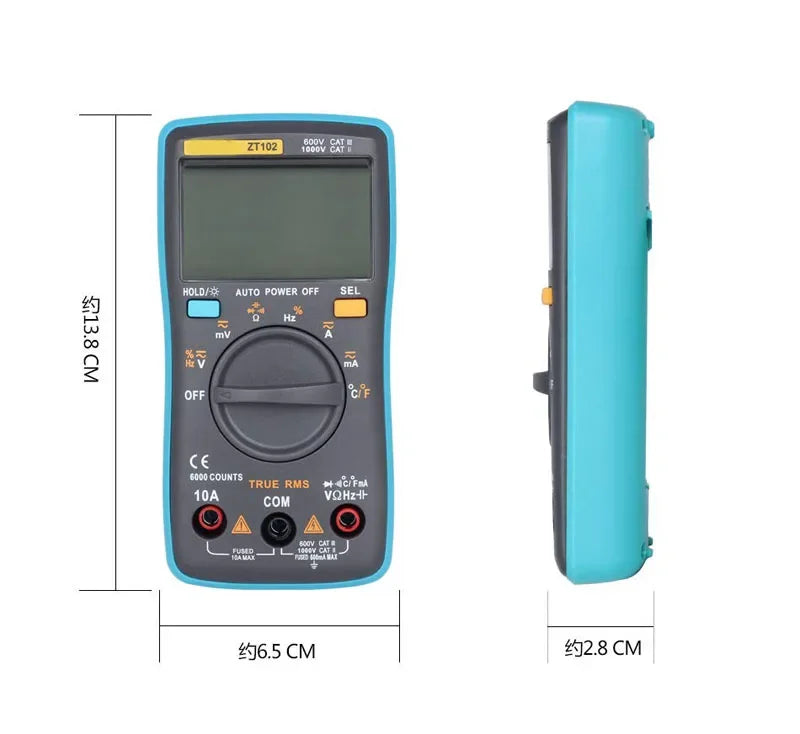

Product Size: 125mm * 65mm * 24 mm

Package Size: 16 * 9.7 * 4.5cm / 6.3 * 3.8 * 1.8in

Package Weight: 251g/0.55lb

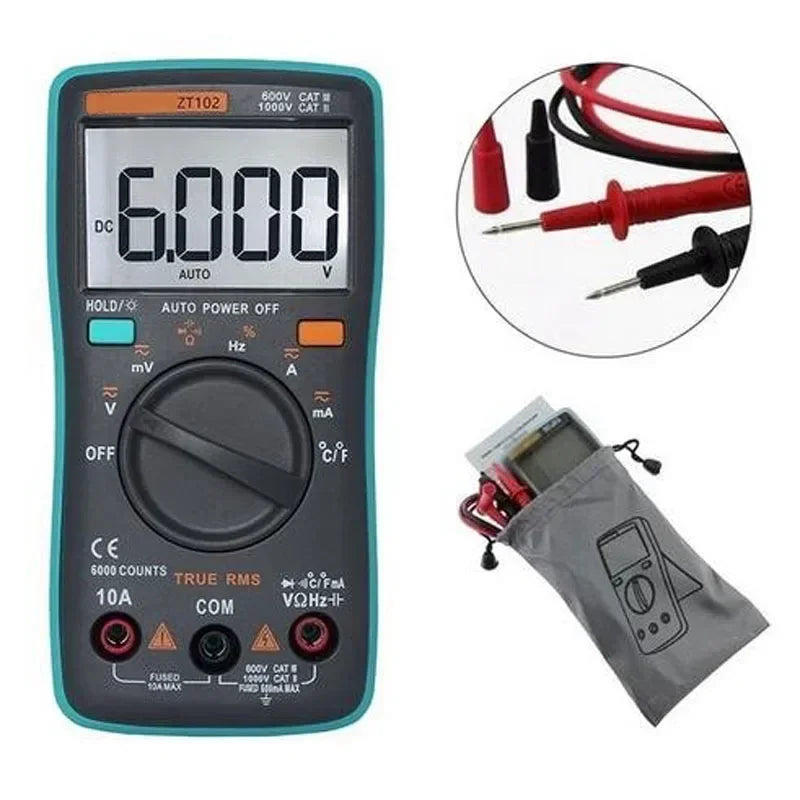

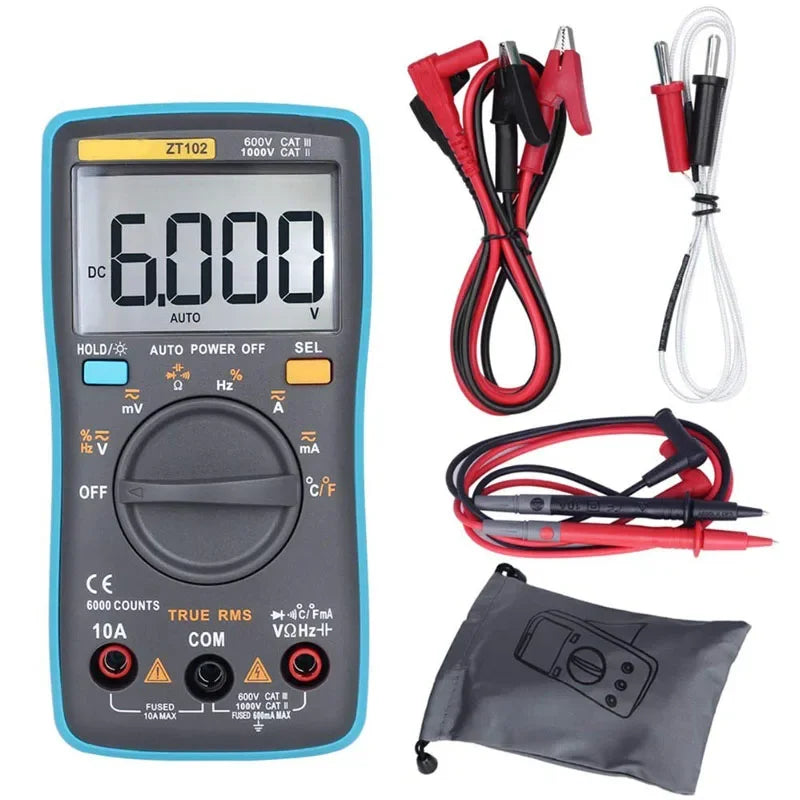

Package:

1 x Digital Multimeter

2 x Test Leads

1 x Temperature Test Cable

1 x English Manual

1 x Cloth bag
